LTM8048EY#PBF
Manufacturer:
Analog Devices
Mfr.Part #:
LTM8048EY#PBF
Datasheet:
Description:

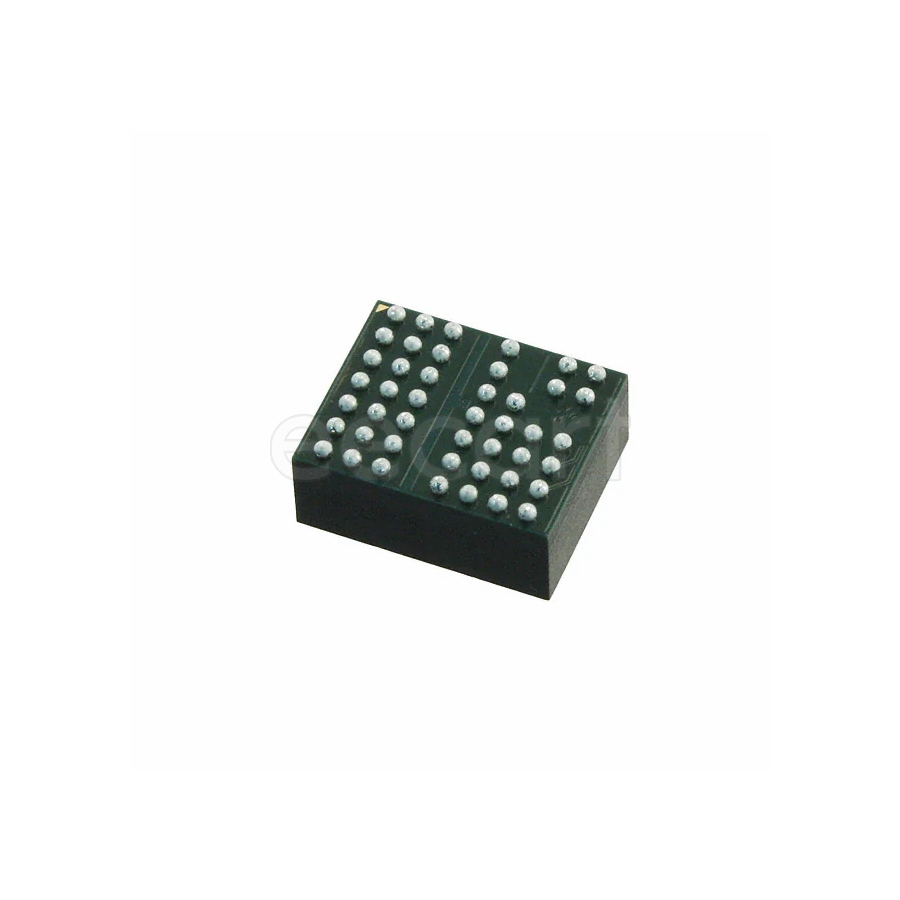

Voltage Regulators - Switching BGA-45 SMD/SMT Flyback Adjustable 13 V
| Parameter | Value |
|---|---|
| Length | 11.176 mm |
| Width | 8.89 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 45 |
| Height | 4.826 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 3.1 V |
| Output Current | 440 mA |
| Output Voltage | 13 V |
| Operating Supply Voltage | 32 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Output Current | 300 mA |
| Number of Channels | 2 |
| Operating Supply Current | 850 µA |
| Max Input Voltage | 32 V |
| Number of Outputs | 2 |
| Isolation Voltage | 725 V |
| Voltage - Output 1 | 13 V |
| Min Output Voltage | 1.2 V |
| Max Output Voltage | 13 V |
| Voltage - Output 2 | 12 V |
| Schedule B | 8542390000 |
| Quiescent Current | 850 µA |
| Topology | Flyback |
Stock: 101
Distributors
pcbx
pcbxUnit Price$11.52112
Ext.Price$11.52112
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $11.52112 | $11.52112 |
| 10 | $10.91110 | $109.11100 |
| 25 | $10.67811 | $266.95275 |
| 50 | $10.50450 | $525.22500 |
| 100 | $10.31441 | $1031.44100 |
| 300 | $10.12776 | $3038.32800 |
| 500 | $9.94464 | $4972.32000 |
